SYSTEMS OVERVIEW
PEB Framing Architecture We categorize our framing systems to suit custom layouts, spacing parameters, and structural loads.
architecture Primary Framing Systems

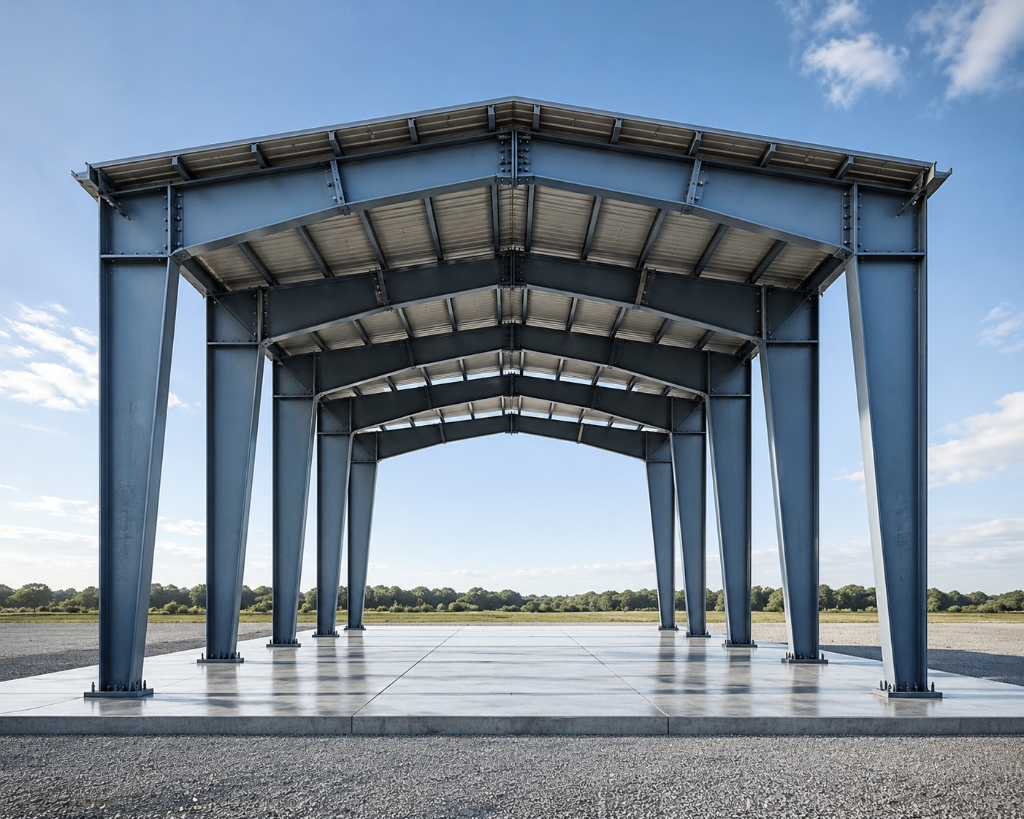

expand_more Built-up steel columns and rafters (I-sections) with tapered or uniform profiles, engineered for wide spans and high structural clearance.
SPECIFICATION DETAILS
Steel Standard ASTM A572 Grade 50 / IS 2062
Yield Strength 345 MPa / 34.5 kN/cm²

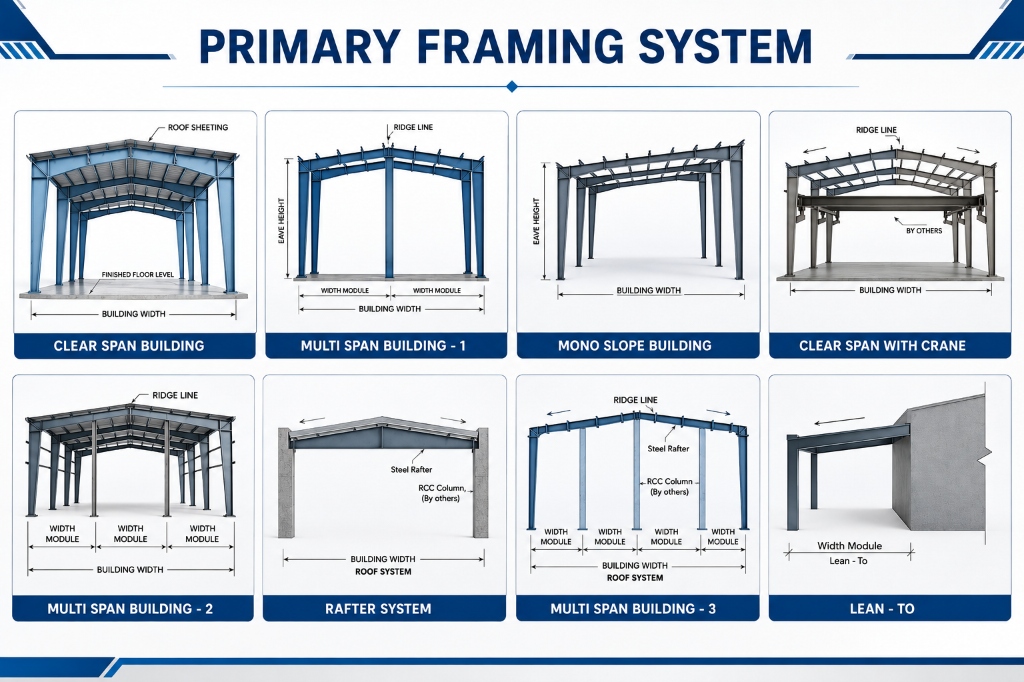

Framing Styles Clear Span, Multi-Span (1, 2, 3), Mono Slope, Rafter System, Lean-To
Design Codes AISC 360, IS 800:2007, MBMA 2012
grid_view Secondary Framing Systems
expand_more Cold-formed Z and C purlins/girts designed to support building envelopes and transfer loads to primary frames.
SPECIFICATION DETAILS

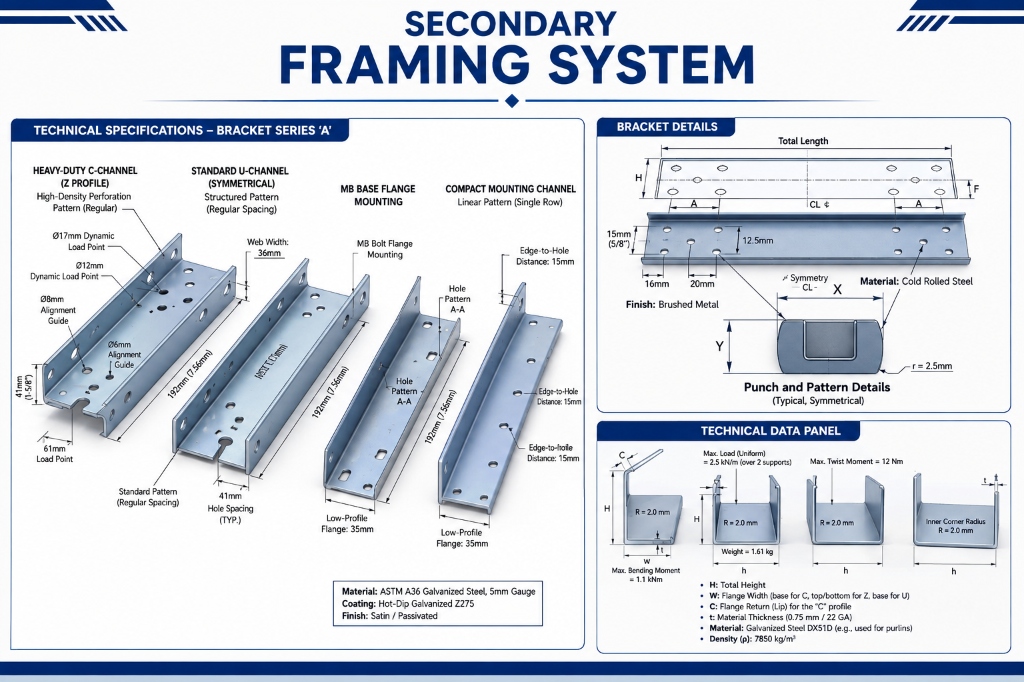

Bracket Specs Bracket Series 'A' Heavy-Duty C-Channel, Z-Profile, Symmetrical U-Channel
Material & Coating ASTM A36 Galvanized Steel (5mm gauge), Z275 Hot-Dip Galvanized Zinc
Load Capacity Max Uniform Load 2.5 kN/m (over 3m span)
Bending Moment Max Bending 1.1 kNm / Max Twist 12 Nm
precision_manufacturing Crane Runway Systems

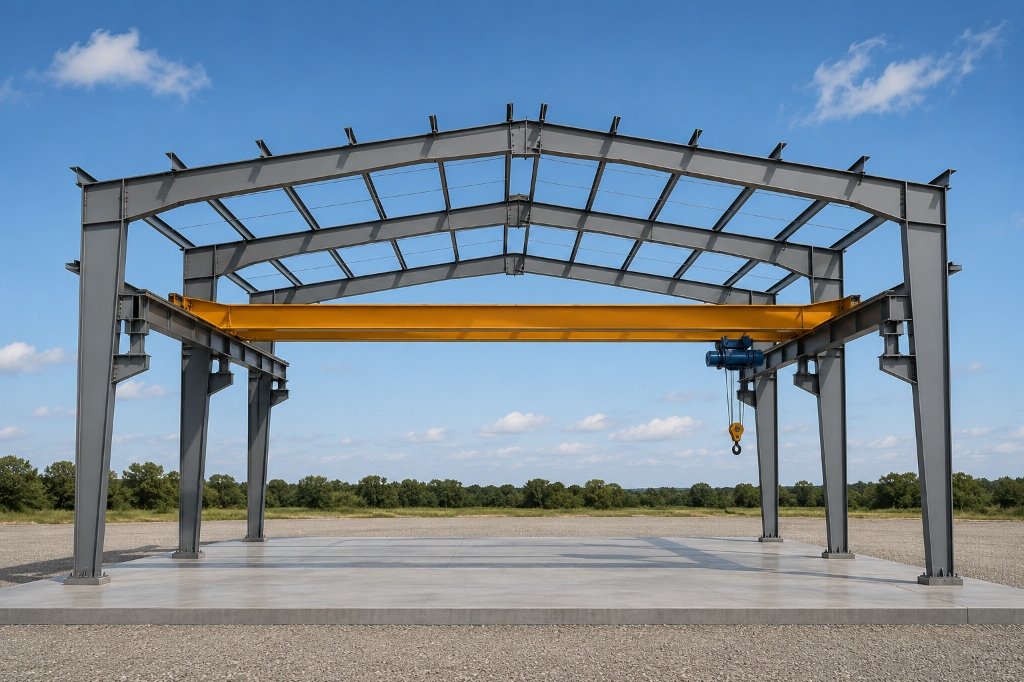

expand_more Runway beams, columns, and crane brackets built to support overhead hoisting operations.
SPECIFICATION DETAILS

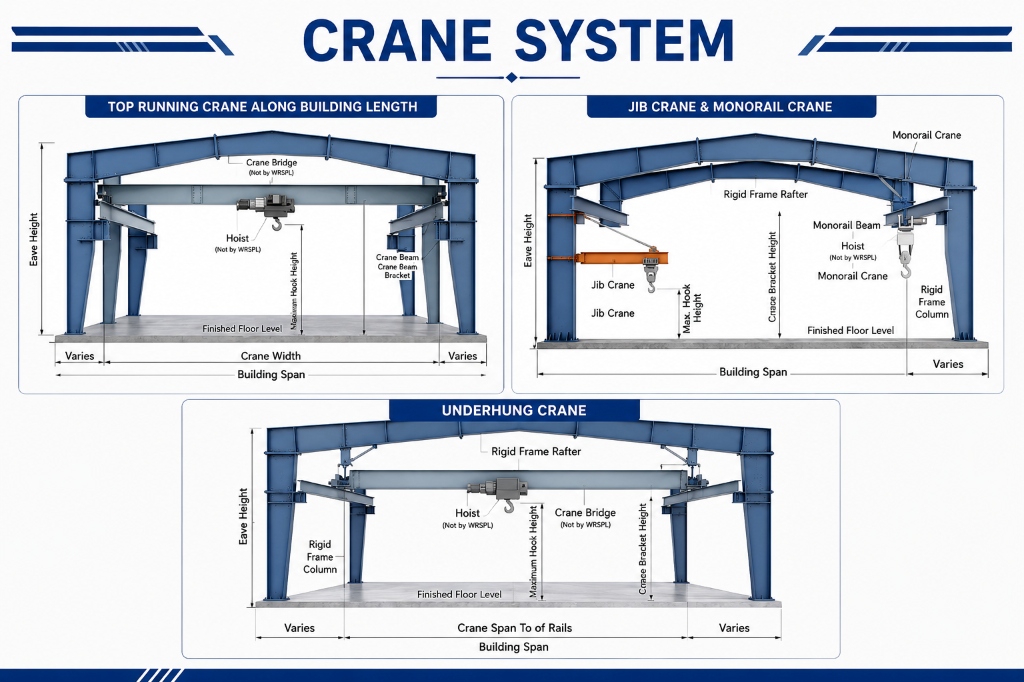

Crane Integration Top Running Crane along building length, Jib Crane, Monorail Crane, Underhung Crane
Design Standard AISC Design Guide 7 / Safety load design
Max Crane Load 100+ Metric Tons
layers Roofing & Decking Systems
expand_more Advanced double-skin insulated standing seam assemblies and composite decking.
SPECIFICATION DETAILS
Standing Seam Roof Standing Seam Roof Assembly (PE-coated liner tray, VCL, Z-purlin support, Z-bar spacer, non-combustible Mineral Wool, Halot-clip)

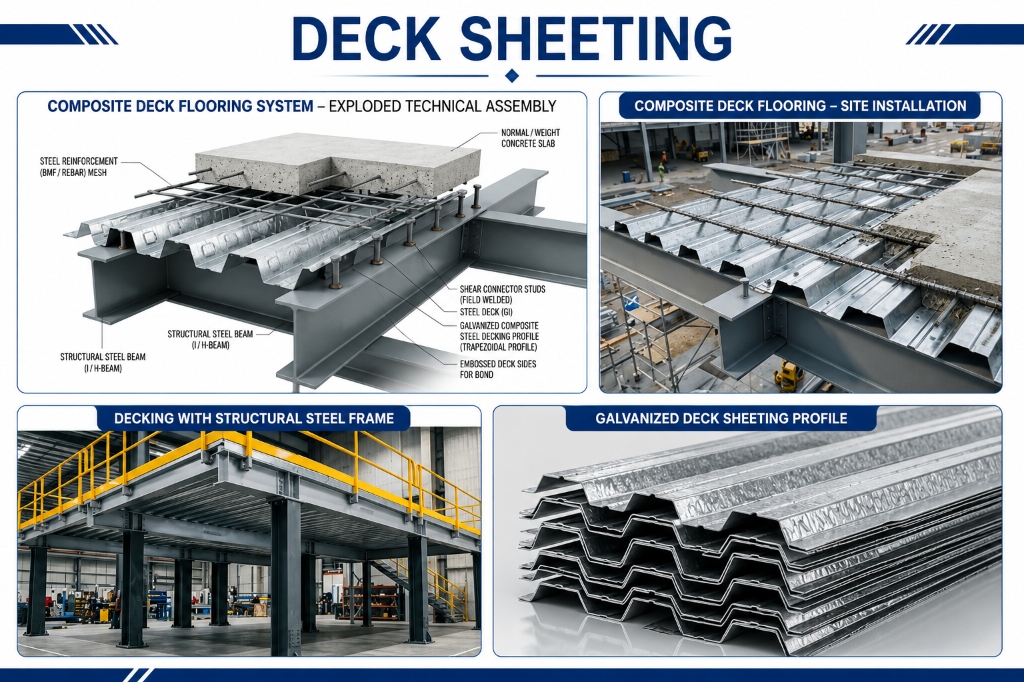

Deck Sheeting Composite Deck Sheeting (Trapezoidal profile, normal weight concrete, rebar mat, field-welded shear studs)
wysiwyg Wall Cladding & Sandwich Panels
expand_more High-grade wall sheeting and factory-applied insulated panel systems.
SPECIFICATION DETAILS
Hi-Rib Wall Sheet Hi-Rib Wall Sheet, steel girts, insulation layer, overlap joints
Sandwich Panels PUF Insulation (PUR Foam 100mm) sandwiched between 0.6mm top steel and 0.5mm bottom steel liner, thermal break tape, concealed fasteners
construction Flashing & Accessories
expand_more Weatherproofing flashing components, gutters, and ventilation systems.
SPECIFICATION DETAILS
Flashing Profiles Apron, Eaves, Barge Board (Gable End), Corner, Wall, Facial, Cap, Cladding Bottom Flashing
Ventilation & Curves S-Type Louvers, Ridges, North Light Curves, Roof Crimped Curved Sheets
Gutter Outlets Valley Gutters, Eaves Gutters (with Nozzles, Stopends, Dropends, Outlets)
Technical Documentation Search or filter our resources library for CAD connection blueprints, loading manuals, and steel compliance audits.
picture_as_pdf
Primary Framing Specs 2024
PDF • 4.2 MB
download description
Installation Guide V2.0
DOCX • 1.8 MB
download settings_suggest
Standard Connection Details
DWG • 12.5 MB
download workspace_premium
ISO 9001 Compliance Certificate
PDF • 1.1 MB
download Design & Detailing Compliance Neotech designs and details all Pre-Engineered Buildings in accordance with international codes (AISC, IS, MBMA) using licensed high-end structural software:
monitoring STAAD.Pro
draw AutoCAD
architecture MBS (Metal Bldg)
schema Tekla Structures
